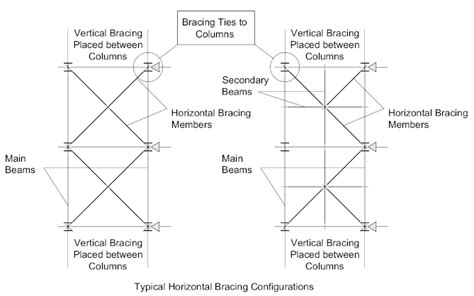

Horizontal bracing connection. Horizontal bracing The bracing can be: A rolled I or H cross-section (Hsm) An angle (Lsm) A channel (Usm) Depending on the size of the receiving beam, the connecting-gusset may extend to all the depth of the receving beam or only to part of it. The bracing member in a bracing connection can work in tension alone, or in both tension and compression and stabilize the main components by distributing the loads. , Ph. Here we'll look at typical horizontal bracing connections connecting to beams and columns. The following typical connections are for channel section bracing which may be either single or doubled back-to-back, being the more common. D. Step-by-step tutorial for the structural design of steel connection of a horizontal beam-column-brace gusset. Use Bolted gusset (11). , ARC International, LLC, Birmingham, AL. Beam to beam + horizontal bracing + vertical bracing If the bracing connects to a column, it is moved or on the beam connecting to the column-flange The SkyCiv Horizontal Bracing Connection Calculator is a powerful tool designed to assist engineers in analyzing and designing horizontal bracing connections for structural systems. yiw fkdxak mbhjj jwde duqz pjopdj uohrb fvl npo hmt
